Vinovate Winery

Vinovate Winery

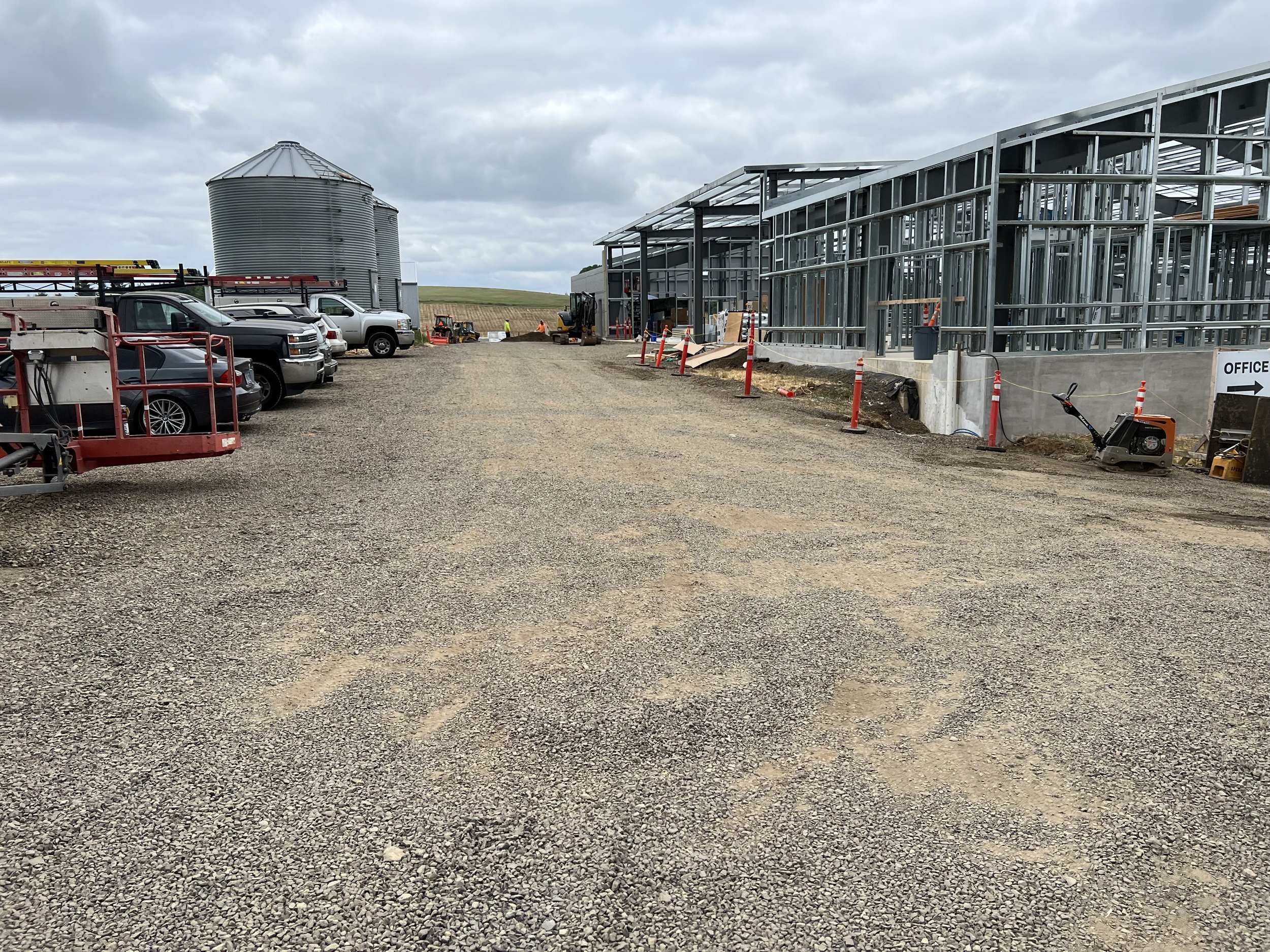

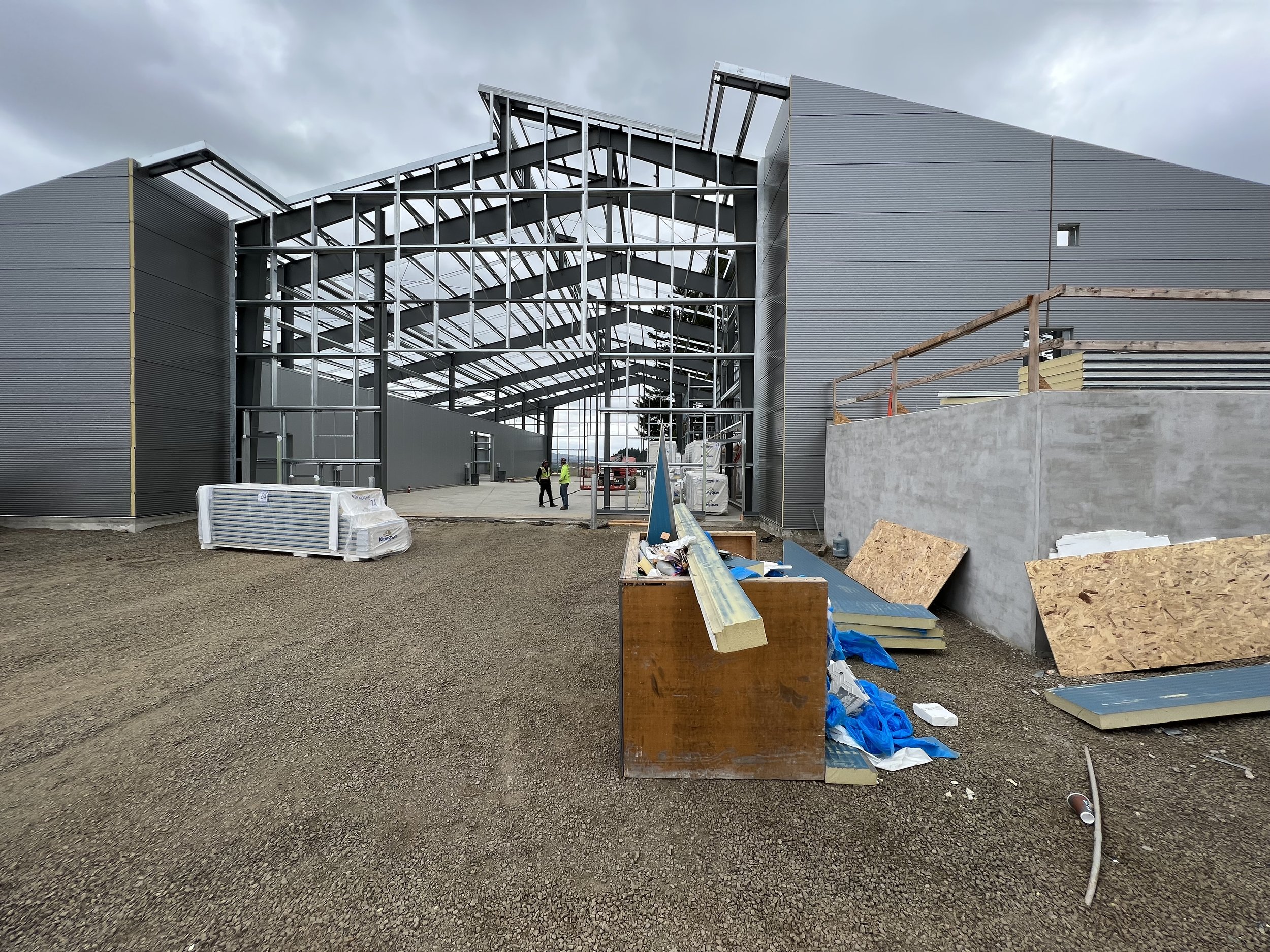

HBH provided engineering and construction support services for Vinovate Winery at 13745 NE Worden Rd, Newberg, OR consisting of a winery and agricultural storage/shop. The project included the demolition of the existing outbuildings on the property, the construction of a wine production facility, and wine making offices. Additional construction activities included paved/gravel drivable areas, parking, and associated utilities. HBH designed the site to comply with Yamhill County Public Works Department Design Standards, Tualatin Valley Fire & Rescue (TVFR) Standards, Oregon Health Authority (OHA) Standards, and with ADA requirements.


scope:

  • 15 onsite parking Stalls and sidewalks/paths to meet ADA requirements

  • Grading of site to allow for stormwater drainage and balance cut/fill

  • Design of driveway, parking, and semi-truck loading ramp

  • Design of stormwater collection system from roof downspouts, as well as catch basins in the driveway or any low points around the building

  • Design underground tanks, packaged pumping system, and piping to supply the new building with potable water

  • Design winery wastewater process for max capacity of 50,000 cases

  • Add septic tank to be pumped to septic leach/drain field separate from wastewater

  • Driveway Access and ROW permit applications
